X-RAY SCAN

INDUSTRIAL COMPUTED TOMOGRAPHY

Carùs’ R&D department continues to tirelessly optimise the production process and improve the product quality. A state-of-the-art fully customised industrial tomography has recently been introduced, capable of scanning large objects in a short space of time.

Carùs innovative computerised industrial tomography service is available to our customers, allowing for increased quality with the strictest confidentiality.

WHAT IS THE CT SCAN?

The computed tomography (CT) scan is a powerful non-destructive investigation technique that allows one to see inside objects.

CT is a particular application of X-rays which, thanks to an evaluation of the absorption of these rays by the material traversed, reconstructs in three dimensions the volume and internal structure of the analysed objects .

These features make CT one of the most robust quality control tools available today.

WHAT IS DR?

The Digital Radiography (DR) is the digital mode of acquisition of the single radiographic image. It is the modern version of the radiographic film.

WHAT IS FLUOROSCOPY?

Fluoroscopy is a technique that allows to obtain a movie of a sequence of DR. Therefore it allows to analyse internal movements of the analysed object.

WHAT KIND OF ANALYSIS CAN WE MAKE?

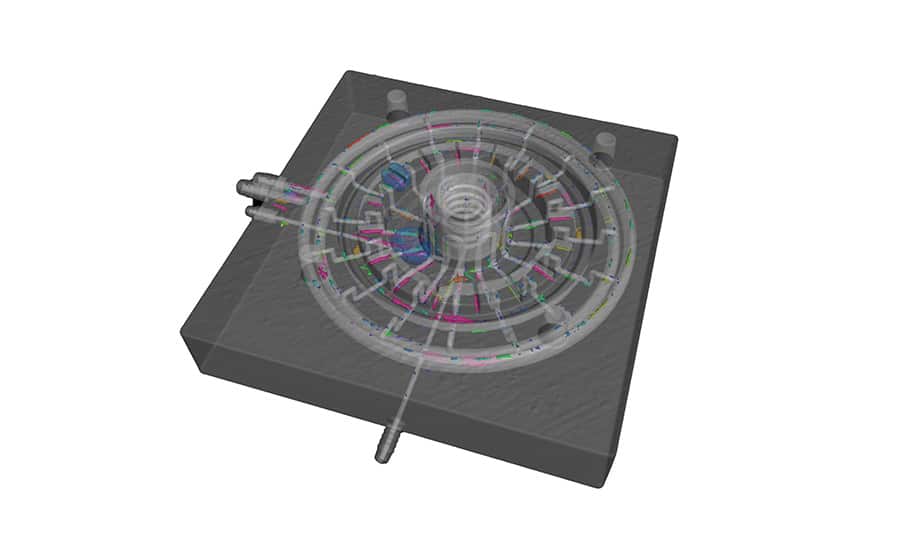

  • Porosities
  • Voids
  • Foreign Materials

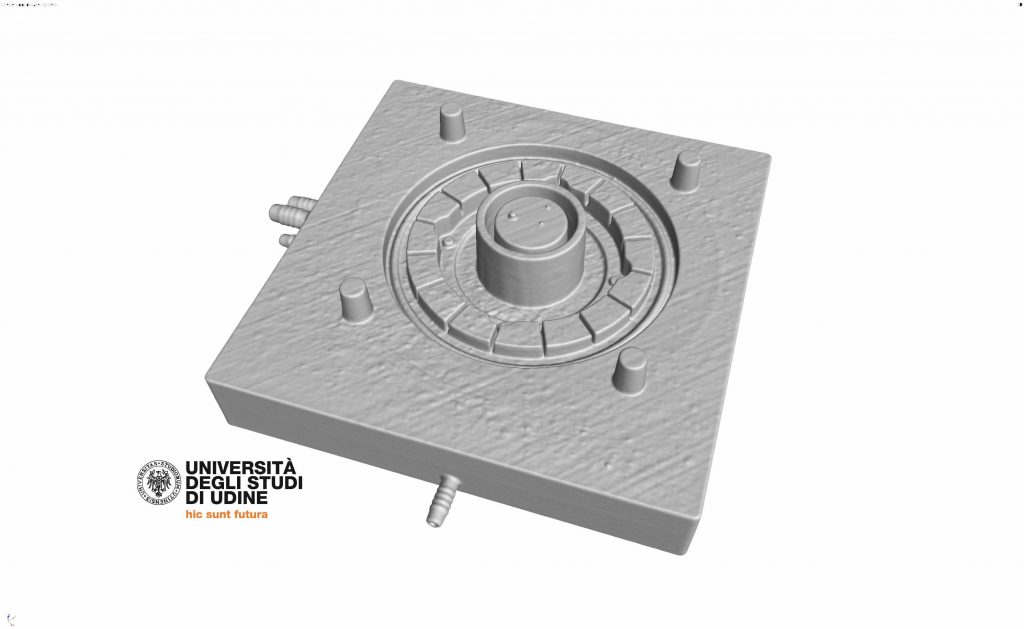

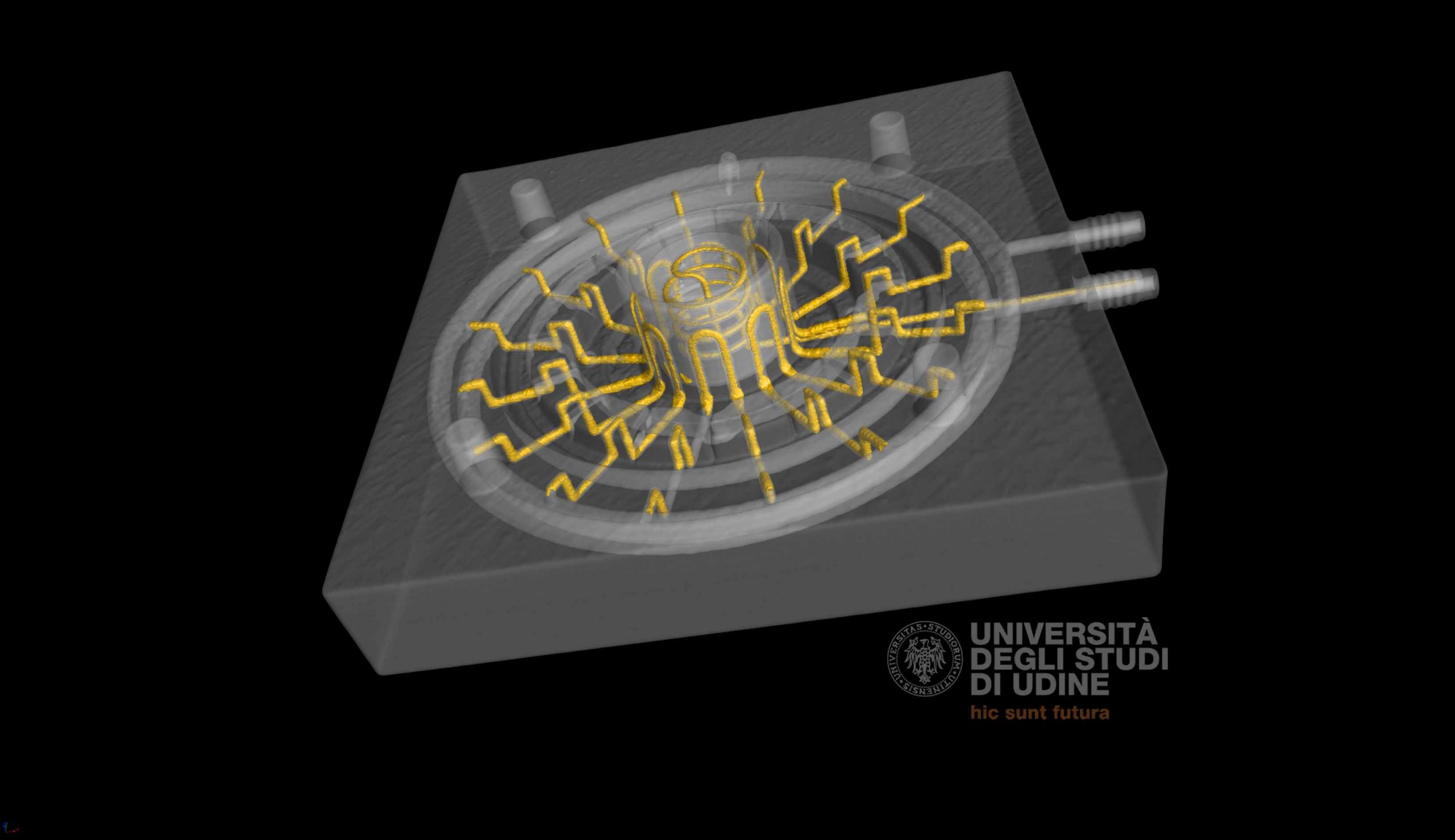

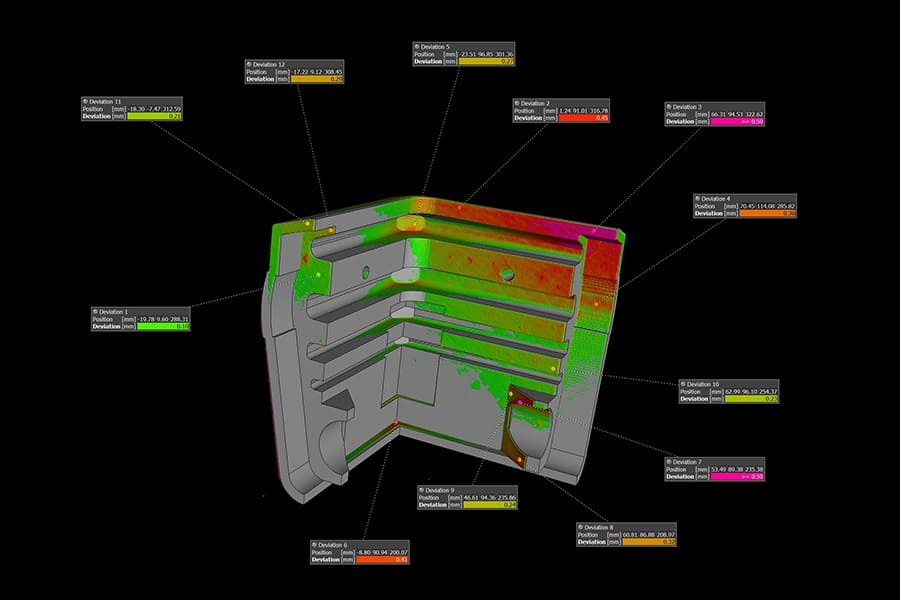

  • Meteorological Analysis
  • Part to Part Comparison
  • Part to CAD comparison
  • Reverse Engineering
  • Assembly Analysis
  • Joining control (welded, soldered or glued joints)
  • Wall thickness
Prima Dopo

WHAT MATERIALS CAN WE ANALYSE?

All materials of density equal or inferior to that of the light alloys, for example:

  • polyurethanes
  • wood
  • Organic matter
  • plastics
  • rubbers
  • carbon fiber and composite materials
  • aluminium and light alloys
  • magnesium
  • ceramics

WHICH PROCESSES CAN BENEFIT FROM TOMOGRAPHY?

  • quality control
  • R&D
  • defect detection
  • metrology
  • process development
  • failure investigation
  • Reverse Engineering

WHICH SECTORS CAN BENEFIT FROM TOMOGRAPHY?

  • Additive Manufacturing (3d scanner for additive technologies, the only way of measuring also internal cavities)
  • Automotive (quality control, failure analysis, defect detection, metrology, process development)
  • Aerospace (quality control, failure analysis, defect detection, metrology, process development)
  • Medical (quality control, failure analysis, product development, metrology, first-article inspection)
  • Food industry (quality control, foreign contaminants, product development)
  • Geology (Research, documenting specimens, core sample analysis)
  • Forensic Engineering (failure investigation)
  • Research

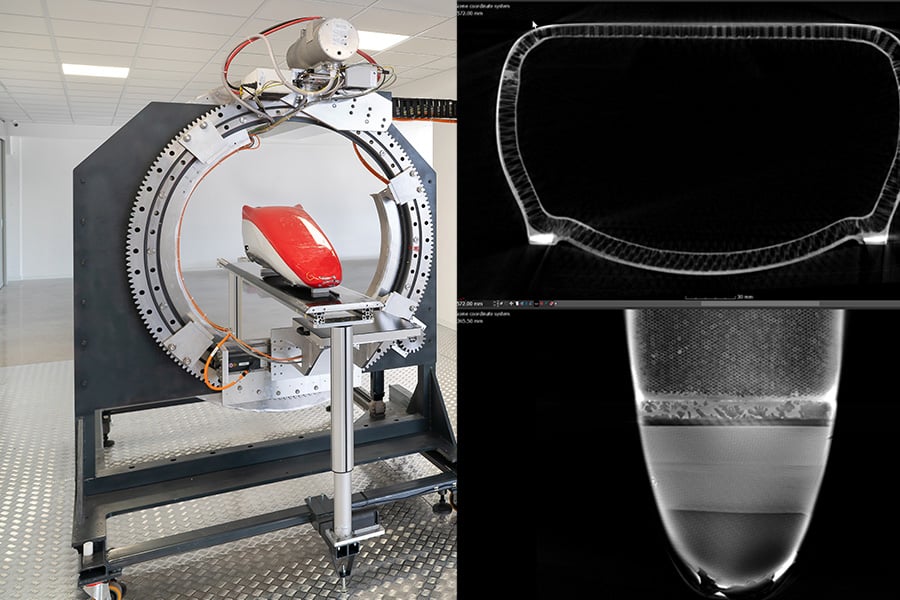

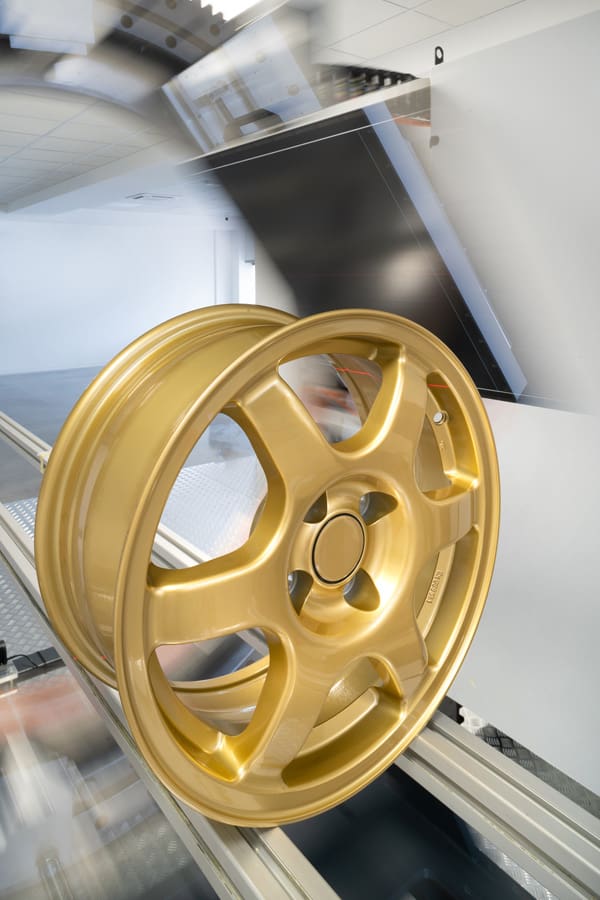

Technical features of the tomograph

  • Max Reconstruction Diameter of the scanned object: 580 mm
  • Max Reconstruction Length of the scanned object: 10 m
  • Max Diameter of the scanned object: 700 mm
  • Flat Panel Detector: 430 x 430 mm
  • Outstanding Image Resolution: 3072 x 3072 pixel @ 139 um
  • Excellent Voxel Reconstruction: down to 100 um
  • Up to 5760 images per turn for an unsurpassed spatial resolution
  • Scan Time: 60 s/stack (stack volume: 600×200 mm @ standard mode)
  • Reconstruction Time: about 90 s/stack @ 300 um voxel
  • X-RAY Source up to 150 KV/250 mA
  • X-RAY Tube with a double air-liquid chiller for a nonstop using
  • CT/DR/FL multi-purpose system
  • Voxel optimised for CFRP and Aluminium Alloy Defect Analysis
  • VGStudio MAX fully compatible
  • Dicom 3.0 and PACS compliance

FAQ

Does the scan leave residual radiation in the part?
NO.

Does scan heats up the part?
NO.

Can multiple parts be CT scanned at the same time?
Yes, it is one of the advantages of having a large scan volume.

SERVIZI

FULL

Servizio FULL di tomografia industriale computerizzata con consegna delle scansioni. Opzionale: corso di formazione specializzato per l’utilizzo di software di visualizzazione.



EXTRA

Servizio EXTRA di tomografia industriale con analisi approfondita e diagnosi.



BUY

Un tomografo industriale necessita di essere realizzato completamente su misura per poter offrire un servizio efficiente ed efficace.
Carùs offre l’accesso ad un percorso che guida la tua azienda a trovare la soluzione più adatta alle esigenze individuali. Tramite i nostri partner qualificati verranno forniti anche i servizi di vendita, manutenzione, formazione ed assistenza.
